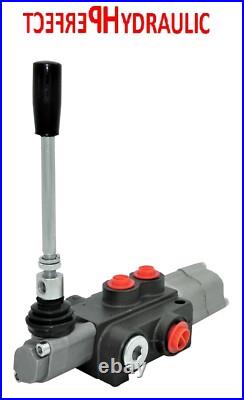

NOTE: We issue VAT invoices for countries in the European Union. 1 SECTION HYDRAULIC DISTRIBUTOR P40. It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and industry in a broad sense. The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices. Floating section, or slow run, used, among others for snow plows or TUR front loaders. Causes free movement of the piston rod in hydraulic cylinders. Protects elements that have direct contact with the ground, e. Plow blade, from damage. Recommended system oil flow: 0 – 40 l / min. Control example: one double-acting cylinder. Can be connected in series to an existing system (pressure sleeve required). Position 0 neutral (lever set vertically) cylinder piston rod stands – oil goes to the overflow. Position 1 working (lever set in a forward position) the cylinder piston extends. The 2 working position (lever positioned backwards) the piston rod of the cylinder retracts. Floating position 3 with the latch (lever in the maximum forward position) the cylinder piston rod works loosely, extends and retracts freely under the influence of forces. Many possibilities of placing the lever see photos. Pump feed (P): BSP 1/2”internal thread Return to tank (T): BSP 1/2”internal thread Section output (A, B): BSP 3/8”internal thread Series connection (N): BSP 1/2internal thread. Maximum supply pressure: 250Bar Maximum return pressure: 50Bar Maximum pressure on sections: 300Bar. Factory overflow valve set at 175Bar Self-adjusting, full turn, change by 30Bar. Recommended oil temperature range. Permissible ambient temperature: -40 C to +60 C Permissible oil temperature: -15 C to +80 C. Dimensions may be slightly changed.
